Product name, Model Outline Catalogue
(PDF)
Released on 19 March 2024

Basic encoder mounted NC rotary table


(Click to enlarge)

Effective for use in a dusty environment such as grinding, glass processing, and ceramic processing

Shut out particles such as cutting powder and polishing powder from entering the main body by using special seals and air purges

Go to product detail page

Catalogue
Released on 1 November 2023

NC rotary table for Grinding centre


(Click to enlarge)

Effective for use in a dusty environment such as grinding, glass processing, and ceramic processing

Shut out particles such as cutting powder and polishing powder from entering the main body by using special seals and air purges

Go to product detail page

Catalogue
Released on 1 November 2023

Robotic hand changer
KWR series


(Click to enlarge)

Robotic hand changers with high precision positioning repeatability, long life and high rigidity will shorten the exchange time of robotic hands and contribute to improve productivity.

Go to product detail page

Catalogue
Released on 18 September 2023

Quick-jaw-change T-nut
BR-AJC-M


(Click to enlarge)

Upgrade existing BR/BRT chuck to a quick jaw change chuck.

The chuck body and jaws are used as is.

Go to product detail page

Catalogue
Released on 31 July 2023

Cylinder built-in high-speed power chuck
HRS08


(Click to enlarge)

Built-in cylinder ideal for machining centre multi-tasking machines

Max. speed 3000min-1

High accuracy of 0.01mm T.I.R.

Built-in lock valve

Go to product detail page

Catalogue
Released on 31 July 2023

Thin dual lock chuck
DLR08


(Click to enlarge)

2-step gripping of parallel gripping and pull-lock gripping ensures workpiece seating without lifting

High accuracy of 0.01mm T.I.R.

Thin and low inertia body

Go to product datil

Catalogue
Released on 8 May 2023

Thin 2-jaw sealed gripper
with measuring function
NPL216S


(Click to enlarge)

Possible to measure gripping length

Can be used in harsh environments such as chips, dust, and coolant (IP67)

High gripping force

Go to product detail page

Catalogue
Released on 8 May 2023

Thin 2-jaw sealed gripper
NPL216


(Click to enlarge)

Can be used in harsh environments such as chips, dust, and coolant (IP67)

High gripping force

Also available with measurement function

Go to product detail page

Catalogue
Released on 3 April 2023

Roller gear & cam mechanism NC rotary table
RKT500


(Click to enlarge)

Compact design fits on small machining centres

Maintains stable accuracy for a long term

Built-in rotary joint supports a total of 7 ports: 6 hydraulic/pneumatic ports and
1 coolant port

Maximum work size: Φ500 x H270 mm

Go to product detail page

Catalogue
Released on 1 November 2022

3-jaw sealed gripper
NPG310


(Click to enlarge)

3-jaw sealed gripper ideal for machining environments such as cutting chups, dust, coolant fluid,etc.

Large ID gripping force

Unique sealing structure reduces the number of pipes

Go to product detail page

Catalogue
Released on 12 July 2022

5-axixs centering vise
V75V series


(Click to enlarge)

Introducing the compact centering vise V75V series, which is ideal for rough machining with 5-axis machines.

Sufficiently large gripping force
Low body for good tool accessibility
High durability

Go to product detail page

Catalogue
Released on 1 June 2022

2-jaw high precision,
Ultra-large through hole
High-speed power chuck
BRT series


(Click to enlarge)

Introducing the 2-jaw model BRT in the Next Generation Standard Chuck "BR series"

The advantages of BR such as gripping accuracy 0.01mm T.I.R. and reduction of jaw lift are inherited as they are, and Tnut-Plus can also be used.

Go to product detail page

Catalogue
Released on 1 March 2022

Long stroke
quick plate change gripper
QGBL06+QGL30610


(Click to enlarge)

A long stroke model has been added to the QGB series of easy jaw plate replacement.

Quick jig exchange with easy operation just to loosen the lock nut greatly shortens setup time.

Manual exchange system saves piping or wiring time.

Go to product detail page

Released on 1 October 2021

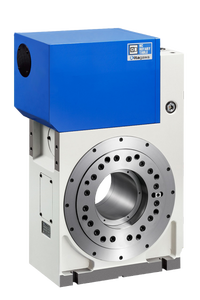

High-performance top motor mount
NC rotary table
TUS400


(Click to enlarge)

Ideal for horizontal machining centre

High clamp torque
Largest in its class, 7000Nm

Lightweight and compact body maximizes machining space.

Abundant options
Wide selection of rotary joints
Supports MP scale and rotary encoder

Go to product detail page

Catalogue
Released on 21 October 2019

Thin 2-jaw parallel gripper
NPGT series


(Click to enlarge)

Achieved thinner and lighter weight than standard 2-jaw models of the same gripping force.

A high gripping force has been achieved by using an elliptical piston.
In additoin, it has both high coolant resistance and lubricity.

Various options such as length measuring sensor, magnetic sensor, proximity switch can be selected.

Go to product detail page

Catalogue
Released on 10 September 2019

Pull lock chuck for differential case machining
PUD12


(Click to enlarge)

High precision machining by low strain

Large centre hole embraces the workpiece deeply to minimize run-out during machning.

Go to product detail page

Catalogue
Released on 10 January 2019

Parallel jaw gripper with through-hole
NTB series


(Click to enlarge)

Using the advantage of NTS series for high quality and high durability, NTB series - designed with a large through-hole

Large through-hole suitable for attaching fixtures to contribute automation

Go to product detail page

Catalogue
Released on 14 December 2018

Manual Operating Pendant
for Quinte series


(Click to enlarge)

Easy holding style with one hand

Enables to operate a rotary table with looking at movement neaby

Able to be additionally installed to Quinte

Functional color and key layout

Organic display ensures visibility

Capacitance touch switch realizes smooth touch operation

Go to product detail page

Catalogue
Released on 12 November 2018

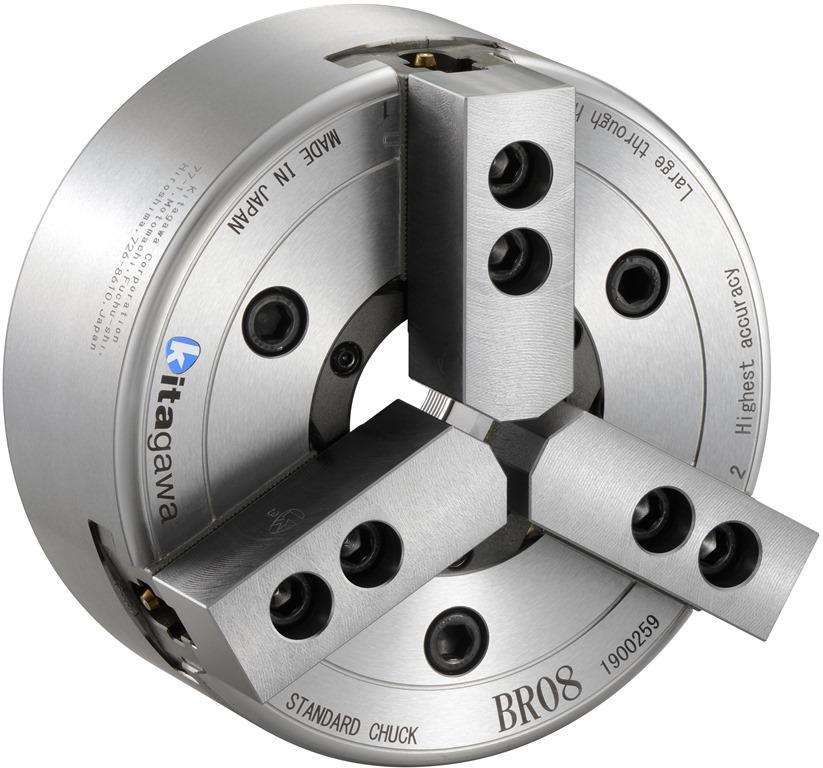

Next generation standard chuck
BR series


(Click to enlarge)

Gripping accuracy of 0.01 mm T.I.R. or less transforming standard machining methods

Reduced jaw-lift

Interchangeable with Kitagawa B-200 & BB200

With the optional special T-nuts it will become more accurate BR-Plus with repeatability of 0.01 mm T.I.R. eliminating jaw-reforming at jaw change.

Go to product detail page

Catalogue

Movie
Released on 15 June 2018

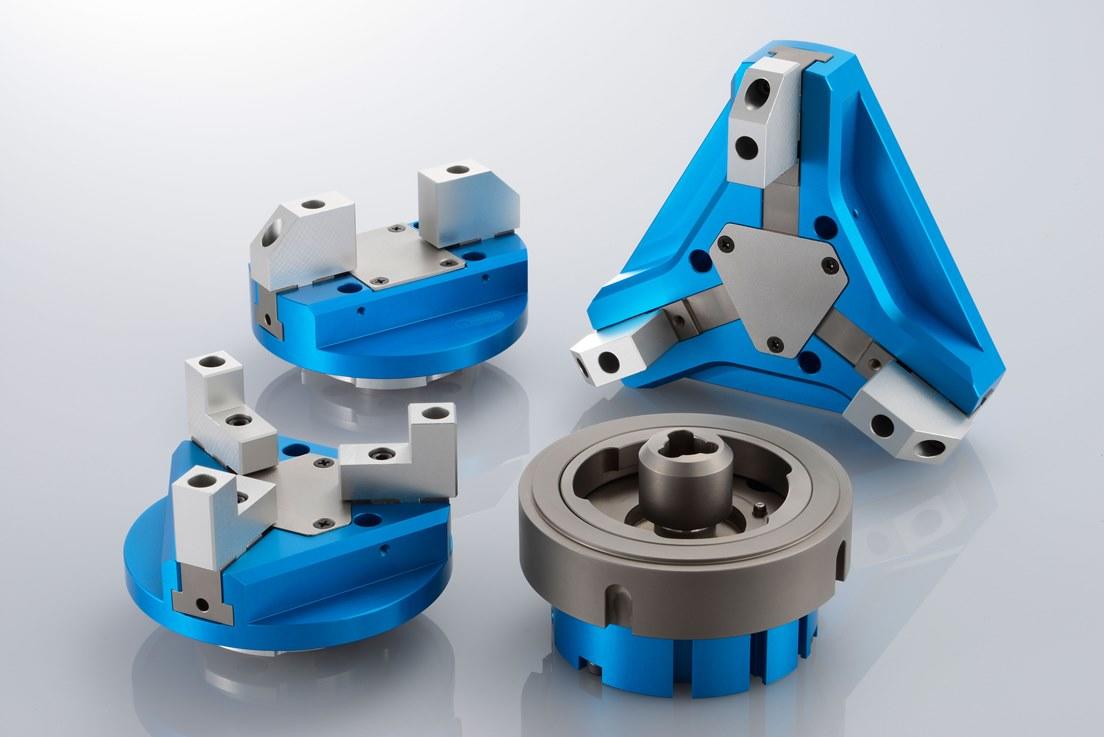

Quick plate exchange gripper
QGB08 + QG series


(Click to enlarge)

Exchanging the jaw plate only by loosening lock nut easily makes exchanging jaws or gripper type from 3-jaw to 2-jaw jaws or vise versa. Since it is manual exchanging system, it is easy to retrofit without wiring or piping works.
It realizes the setup time of robot greatly shortened.

Go to product detail page

Catalogue

Movie
Released on 15 June 2018

Quick jaw change gripper
NTS-Q


(Click to enlarge)

By exchanging the master jaw of the standard gripper with a dedicated "quick master jaw", you can modify the gripper to a quick jaw change model that can replace jaws in just a few seconds.
It realizes the setup time of robot greatly shortened.

Go to product detail page

Catalogue

Movie
Released on 1 June 2018

Strong & Compact NC Rotary Table

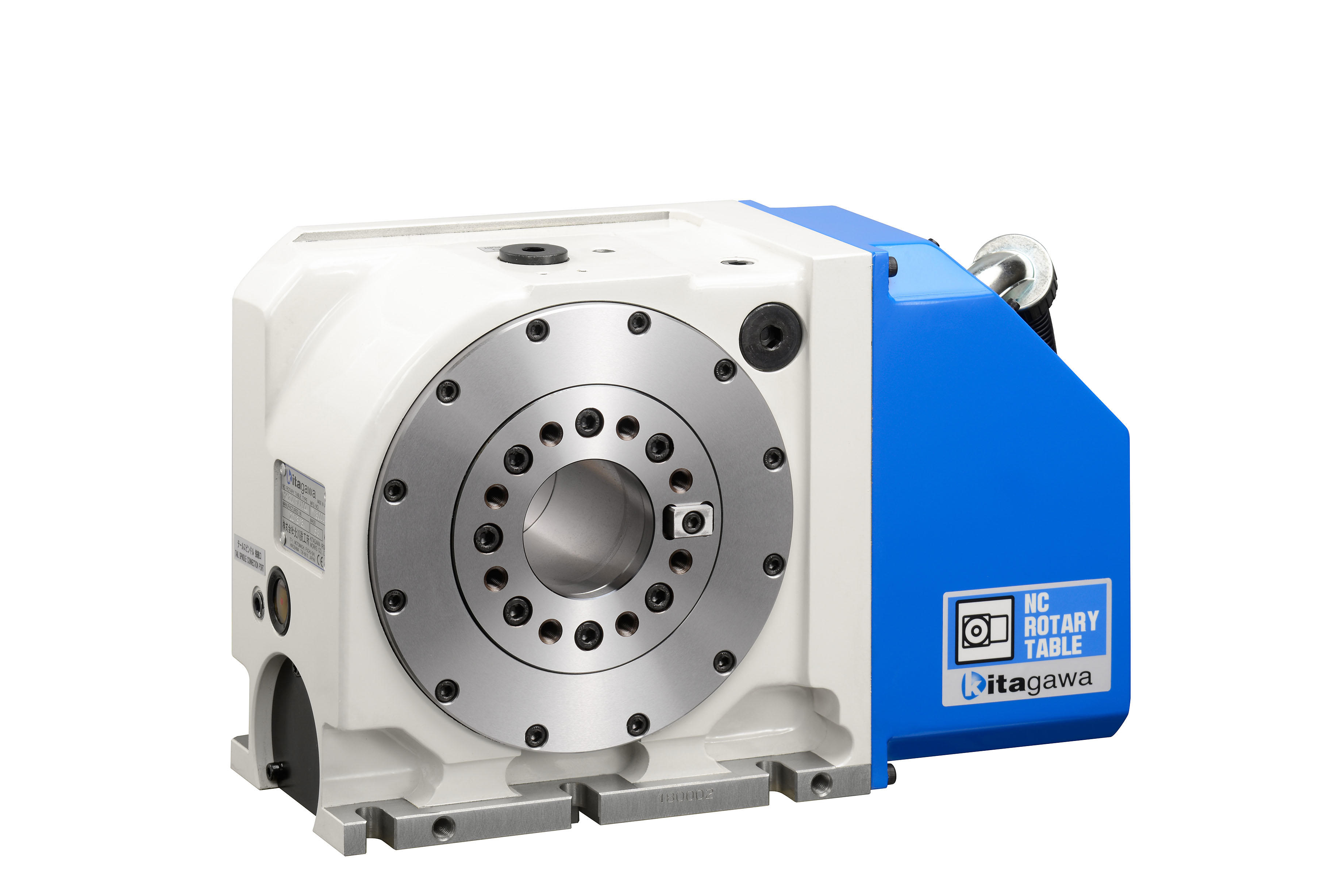

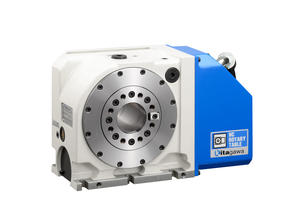

MK200

MK200_DSC7033 .jpg

(Click to enlarge)

The Kitagawa's latest compact NC rotary table MK series has arrived. High-performance and easy-to use model.

・Performance improved --> Powerful clamping torque
・Improved mounting --> Compact and easier maintenance
・Wide selection of rotary joints --> Multi-purpose centre hole, 25MPa high pressure

Go to product detail page

Catalogue

Movie

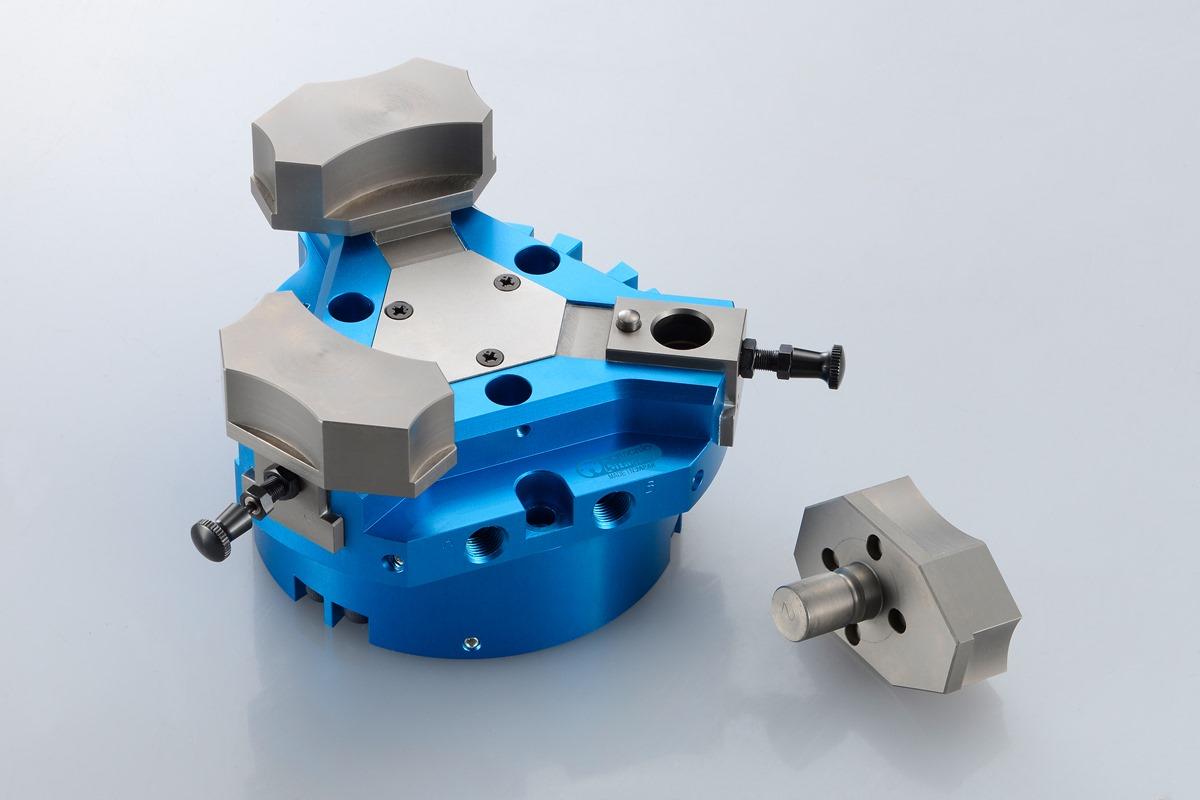

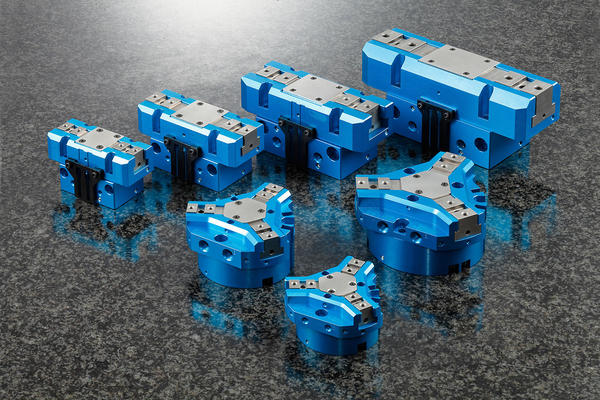

Released on 8 May 2017
Parallel grippers
NTS series
(Click to enlarge)
We will release high quality, high endurance standard model, general purpose gripper NTS series. The highly durable NTS series has a structure that facilitates replacement and maintenance times, easy dismantling and cleaning of the sliding parts, and can reduce the burden of customer maintenance. Moreover, because it is compact and highly accurate, high-precision assembling work can be performed with a smaller robot. As the number of mounting surfaces increased from the conventional type, the choice of mounting method also expanded. Catalogue
Released on 17 November 2016
Maintenance saving Tilting
NC Rotary Table
RKT180
(Click to enlarge)
We will release the maintenance saving Tilting NC Rotary Table, RKT180 optimized for automotive-part production line. Roller-gear and cam reducer provides zero-backlash and maintenance saving. Catalogue
Release on mid July 2016
Ultra compact NC Rotary Table
CK200
(Click to enlarge)
We will release the ultra compact NC rotary table, CK200. The body thickness is 110 mm and the world's top class thinness, the body thickness became thinner than the conventional product (MR 200) by 63 mm. For the use of trunion fixture, it provides a wider machining area than ever. It is ideal for compact machining centres, making it possible to reduce the machine size and reduce the installation space of the machine. Catalogue
Released on 1 April 2016
Tilting NC Rotary Table
TT200
TT200
(Click to enlarge)
We will release new tilting NC rotary table, TT200. It adopts the built-in booster and double disk clamp system, boasting best-in-class clamp torque. As the clamping torque increases from the conventional model, heavier machining is possible. In addition, a rotary joint (hydraulic 4 P / pneumatic 1 P) can be installed as an option. It is compact design, excellent in space saving, and is ideal for mounting on small machining centres (200 mm high column). Catalogue
Released on 1 June 2015
Quick Indexing NC Rotary Table
RK200LA
RK200LA
(Click to enlarge)
We will release the quick indexing NC rotary table RK200A with brake. By shortening the time constant and increasing the maximum rotating speed, the indexing time is shortened. It is used in both vertical and horizontal. The air-supply port for tail spindle and air brake increases versatility, which is useful for trunion fixtures. Furthermore, it can be installed on compact machining centres, which is excellent in space saving. Catalogue
Released on mid April 2014
Tilting NC Rotary Table
TT150
TT150
(Click to enlarge)
We will release the compact designed tilting NC rotary table, TT150 compatible with 5 axis machining. Optionally supports built-in rotary joints, and an external cylinder is available so that mounting of the chuck is possible. Catalogue
Released on mid March 2014
Ultra compact NC Rotary Table

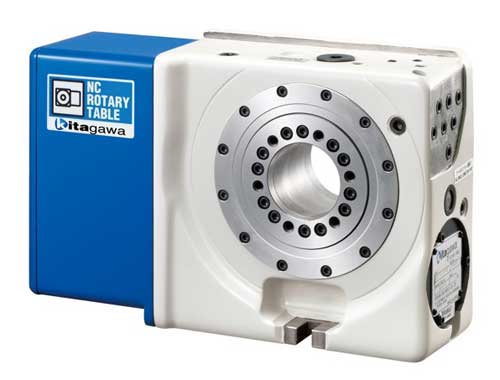

CK160L・CKR160L
(Left hand model)

CK160L CKR160L
(Click to enlarge)
We will release ultra compact NC rotary tables, CK160L and CLR160L which are left-hand models of CK160 and CKR160. Even with the trunion fixture, the machining area is widened more than ever. Furthermore, it became possible to reduce the machine size, and the installation space became compact. Catalogue
