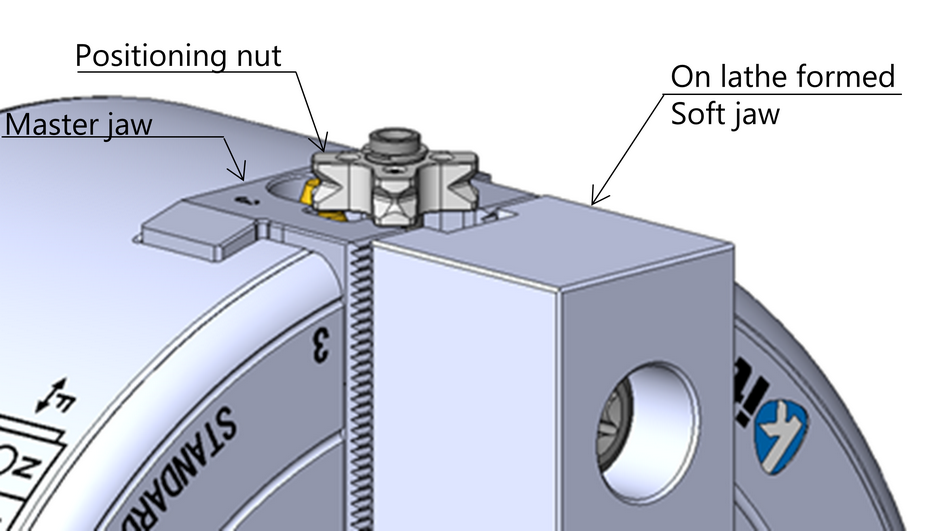

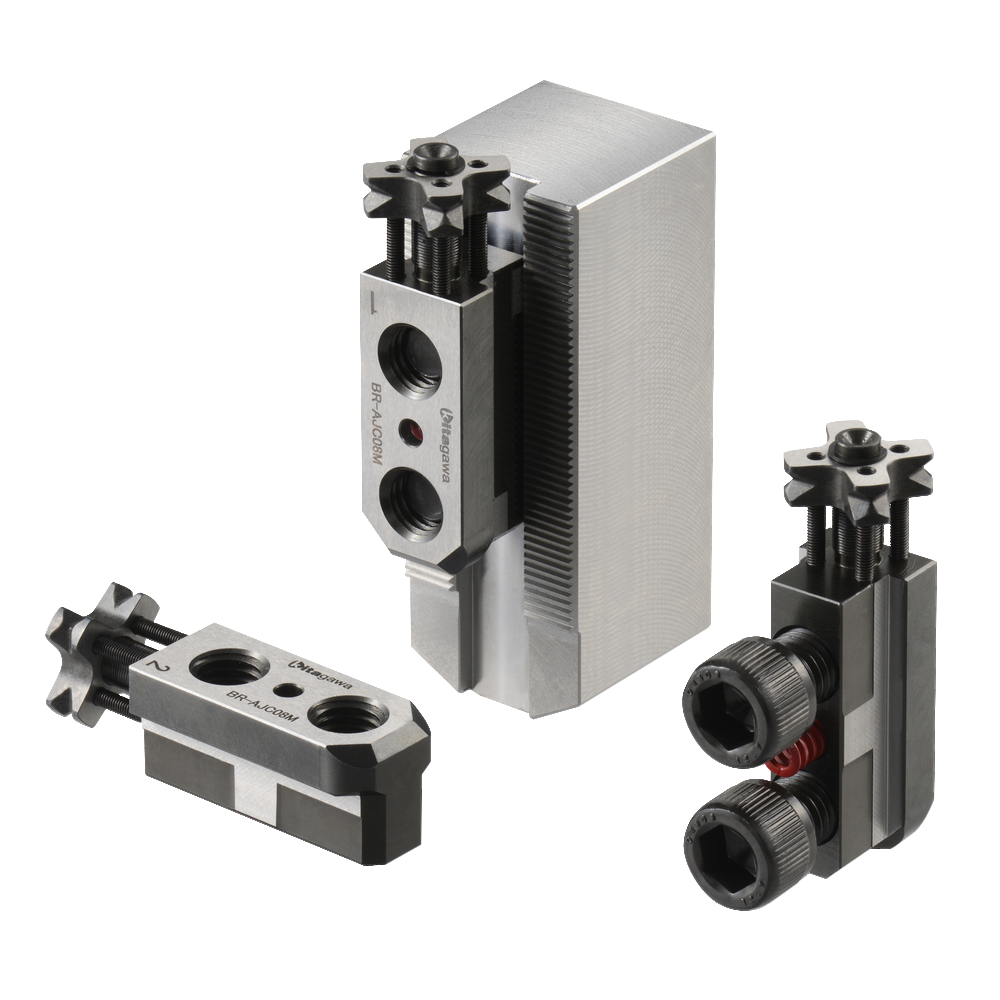

The setting is completed by forming the jaws on the lathe and screwing the positioning nut until it hits the end of master jaw and then locking it.
No matter who installs it, there will be no mistakes in positioning the serrations.

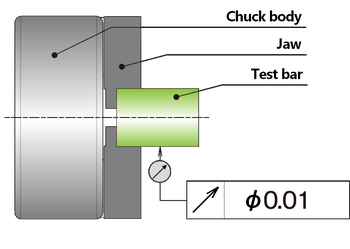

The gripping accuracy is 0.01mm T.I.R. However, 12 inch only has 0.015mm T.I.R.
Even when the jaws are removed and attached, the gripping accuracy is less than 0.01mm T.I.R., so there is no need to reform the jaws. However, only 12 inch is 0.015mm T.I.R.
Needless of reforming jaws after replacement greatly reduces setup time.
When using BR-AJC_M with 6, 10, and 12-inch chucks, the gripping range may differ from when using standard T-nuts. Please take note of this difference.
In case of standard soft jaws
| Chuck model and gripping range | ||
|---|---|---|
| Model | Chuck model | Gripping range |
| BR-AJC06M | BR06 | Ø20 ～ Ø170 |
| BRT06 | Ø24 ～ Ø170 | |
| BR-AJC08M | BR08 | Ø22 ～ Ø210 |
| BRT08 | Ø28 ～ Ø210 | |
| BR-AJC10M | BR10 | Ø36 ～ Ø254 |
| BRT10 | Ø42 ～ Ø254 | |
| BR-AJC12M | BR12 | Ø51 ～ Ø315 |
| BRT12 | Ø62 ～ Ø315 | |
In case of small-diameter gripping soft jaws (SJ**S1)
| Chuck model and gripping range | ||
|---|---|---|
| Model | Chuck model | Gripping range |
| BR-AJC06M | BR06 | Ø12 ～ Ø170 |
| BRT06 | Ø24 ～ Ø170 | |
| BR-AJC08M | BR08 | Ø12 ～ Ø210 |
| BRT08 | Ø16 ～ Ø210 | |
| BR-AJC10M | BR10 | Ø24 ～ Ø254 |
| BRT10 | Ø39 ～ Ø254 | |
| BR-AJC12M | BR12 | Ø41 ～ Ø315 |
| BRT12 | Ø50 ～ Ø315 | |
| Model | BR-AJC06M | BR-AJC08M | BR-AJC10M | BR-AJC12M | |
|---|---|---|---|---|---|
| 2D |  |
|
|
|
|
| TIF |  |
|
|
|
|
| DXF |  |
|
|
|
|
| DWG |  |
|
|
|
|
| 3D | Parasolid |  |
|
|
|
| STEP |  |
|
|
|
|
