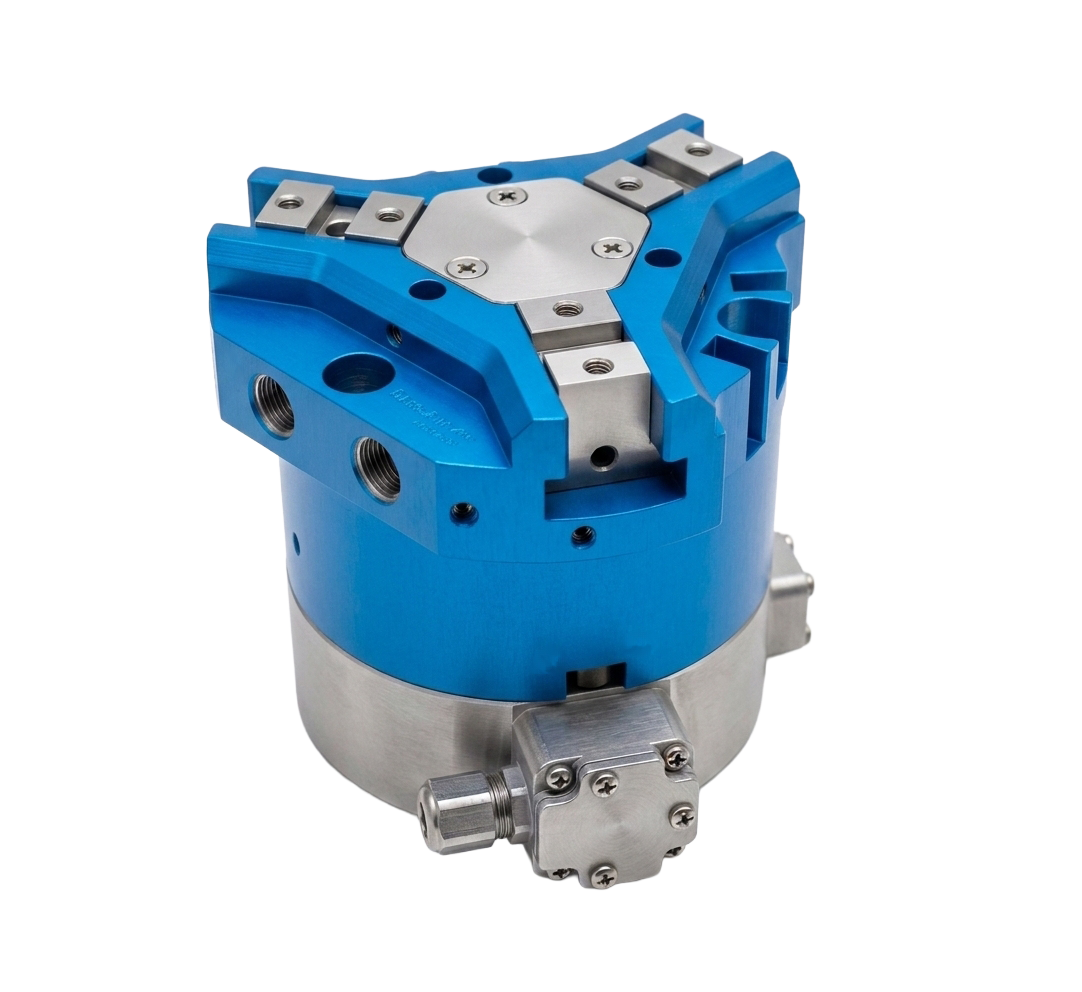

3-jaw parallel gripper - NTS3_S series

High-quality, highly durable standard 3‑jaw gripper with an integrated measuring function

With a built-in scale, it enables diameter measurement (external/internal diameter) through three-point gripping of the workpiece.
High gripping force for stable gripping of heavy work piece
Improved gripping accuracy due to highly rigid body

Download catalogue (PDF)

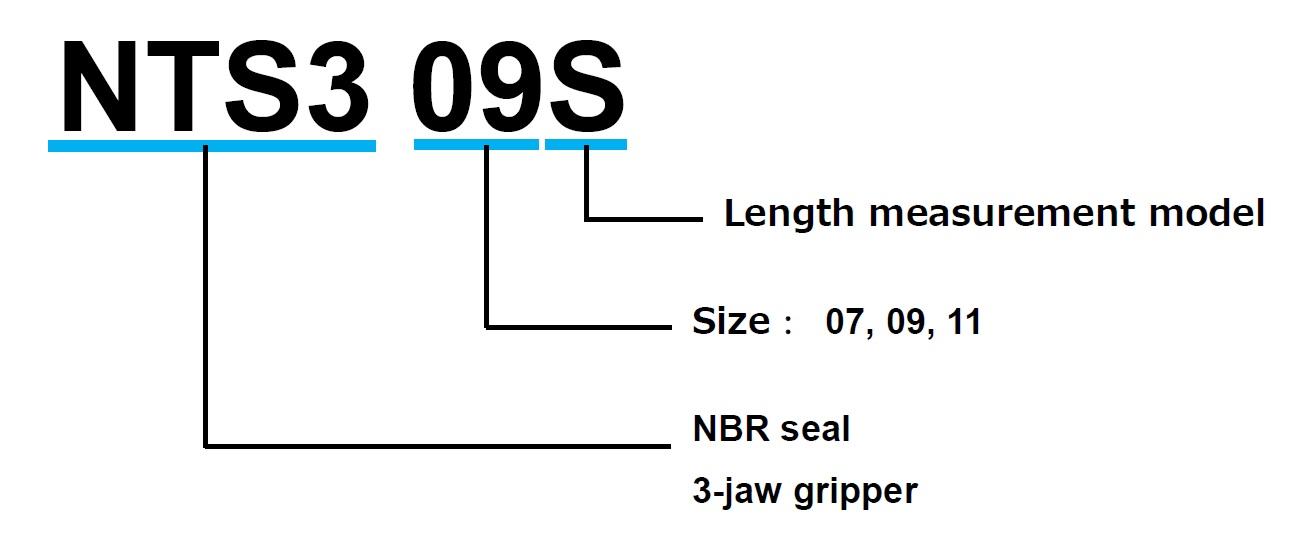

How to order

Please install a check valve in the air-pressure circuit so that the gripper will not release a workpiece even if the air pressure drops down.

Specifications

Model	Jaw Stroke Diameter (mm)	Gripping Force ^{(Note 1)}			Repeatability^{(Note 2)} (mm)	Mass (kg)	Air Consumption per reciprocating (cm³)	Air pressure (MPa)	Operating Temperature (℃)
Model	Jaw Stroke Diameter (mm)	Measurement Distance L(mm)	OD Gripping (N)	ID Gripping (N)	Repeatability^{(Note 2)} (mm)	Mass (kg)	Air Consumption per reciprocating (cm³)	Air pressure (MPa)	Operating Temperature (℃)
NTS307S	12	20	660	750	±0.002	0.71	22.8	0.2～0.6	5～60
NTS309S	16	20	1010	1010	±0.002	1.20	47.5	0.2～0.6	5～60
NTS311S	20	20	1810	1810	±0.002	1.96	106.1	0.2～0.6	5～60

Value at supply air pressure 0.6 MPa.
Value at supply air pressure 0.2 MPa.

Instruction manual

Click here and download the instruction manual for NTS3_S

This instruction manual explains only the length measurement section. Please also refer to the instruction manual for the NTS3 series main unit. Click here for the NTS3 series main unit instruction manual.

Allowable load for gripper

For more information on the allowable load of each gripper, please see the following link.

Allowable load for gripper

Option

Gripping force

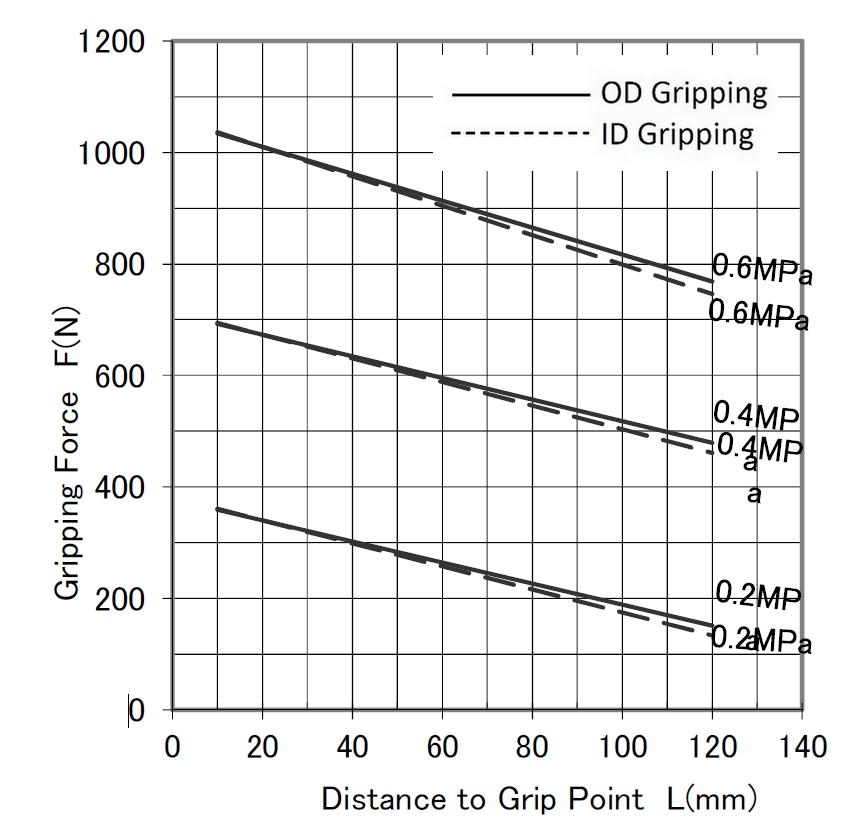

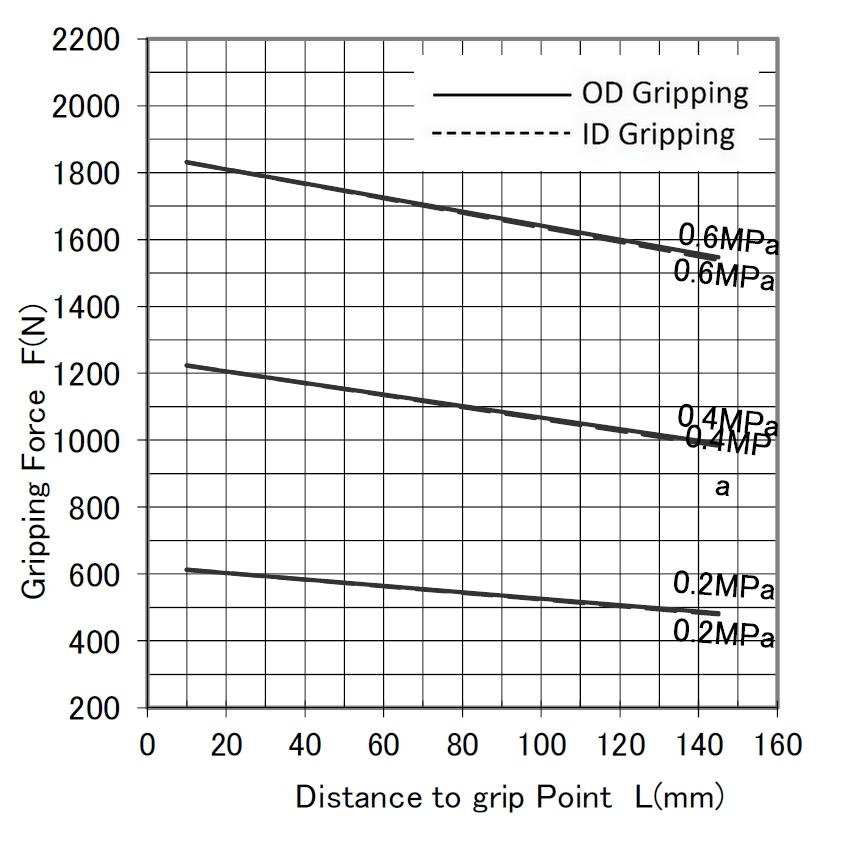

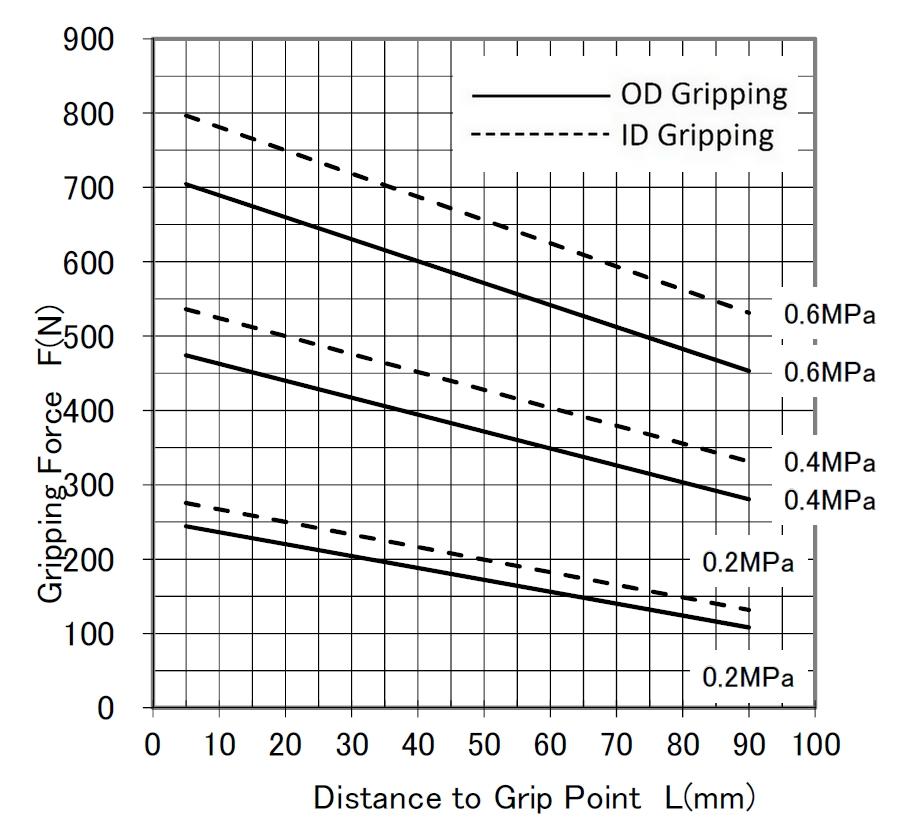

Click the model number and the gripping force diagram will be displayed. The gripping force, F is a product of the actual gripping force per jaw, F1 and the number of jaws

NTS307S
NTS309S
NTS311S

The gripping force will be calculated by the gripper model, air pressure, and other gripping conditions.

Calculate gripping force

Drawing download

Model	Drawing download
NTS307S	PDF	DXF	Parasolid	STEP
NTS309S	PDF	DXF	Parasolid	STEP
NTS311S	PDF	DXF	Parasolid	STEP

Note) The 3D data of the main bodies include three jaw positions: fully open (UC), fully closed (OC), and stroke centre (HCL) for both Parasolid and STEP.
